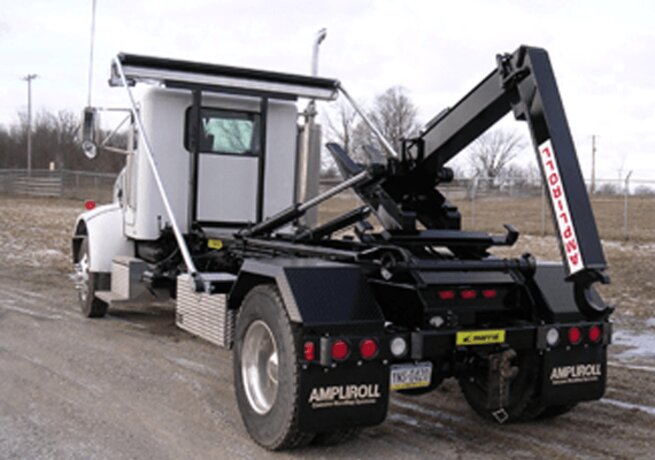

The Ampliroll AL 100 Series is masterfully crafted to safely and swiftly pick up, transport, dump, and unload your containers, translating to enhanced profits for your business. Its cutting-edge telescopic Jib design guarantees optimal load distribution across all your containers. With a commitment to versatility and durability, the AL 100 Series ensures sustained performance over the years, blending lightweight construction with peak efficiency.

Technical Features:

• Designed to handle containers between 10 and 17.5 feet of length, performing all operations from the cab, it needs less than 1 min. for loading bodies The dumping mode is obtained by operating the main rams, actuating arm and tilting frame, with jib extended, altogether pivoting around the rear shaft
• A sub-frame made out of bended plate steel and cross members to be mounted on the truck frame, height 6 1/4 inches.
• A tilting frame, hinged to the sub-frame with a steel shaft carrying the rear centering rollers.
• A main arm hinged on the tilting frame with a mechanical locking mechanism that allows the dumping mode.
• A telescopic jib, sliding in the arm, supporting a wide-open lifting hook enables loading from many positions
• An hydraulic system, manufactured by MARREL.
• Pump, Axial piston – 11 G.P.M. @ 1200 (RPM) SAE B, direct mount
