Capacity Top of Steel: 17.15 cu/yd

Capacity Top of White Oak: 20.0 cu/yd
Net Weight: 9600 lbs. / 4364 kg

Basic Body Dimension:
Body (LxWxH) 8’6” x 20’ x 6’-7 1⁄2”

• Plus 6” White Oak box extensions
• Plus 12” Arched Tarp system

Overall Height on the chassis with extensions and tarp: 8’-1 1⁄2”

Overall Length with conveyor parked on fender: 24’6”

Under Body Apron Conveyor:

• 26” wide pintle chain assembly
• 330 PIW belting mechanically fastened to cross slats
• 22” Effective belt exposure between skirting
• Engineered to carry full capacity in transit
• Variable speed hydraulic/planetary gear box drive

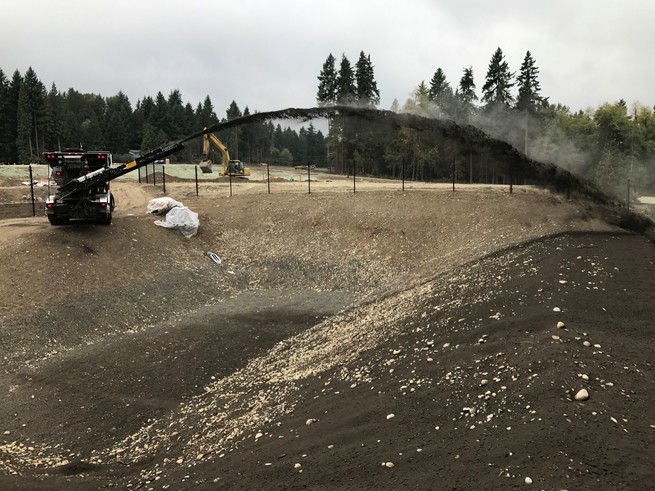

High Speed Boom Conveyor:

• 14” x 19’ c/w 35° troughed idlers
• Endless hot vulcanized chevron belt
• Rubber-clad drive roll
• Variable speed (0-3700 ft/min) hydraulic motor drive
• Full hydraulic lift, swing and rotate
• Left or right conveyor parking for travel

Control Systems:

Full manual valve control from an elevated work station, with 3 function boom maneuverability at ground level.

Full manual valve control from an elevated work station, with full controls at ground level.

Hetronic™ BMSII Proportional Radio Remote Control of all functions including engine throttle.

Pump / P.T.O.:

Tandem, Cast Iron, 3000 psi Bushing Bearing Gear Pump direct mount to air shift power take off.

Oil Cooler:

2 – High Efficiency, Light Weight, 12VDC, Thermostat-Controlled Dual Fan Air-Oil Heat Exchangers.

Super-Shield™:

• Standard Hydraulic “Power Drive”
• Optional Second Friction Drive

Standard Features:

• 1⁄4” Grey HMW Polyliner
• Electronic Engine Throttle Control
• Hydraulic Vibrator
• Manually Operated Arched Mesh Tarp System
• Lighting
• Fenders
• Mud Flaps

Options:

• Dual Location Control (Manual Valves)
• 12VDC Power Tarp Drive System
• 18” Arched Tarp
• Vinyl Tarp vs. Mesh (12” or 18”)
• Aero 575 12VDC Powered Flip Mesh Tarp System
• Custom Color Paint (Non-Metallic)
• LED Lighting Package
• Pneumatic Swing-Out Platform (Radio Valves)
