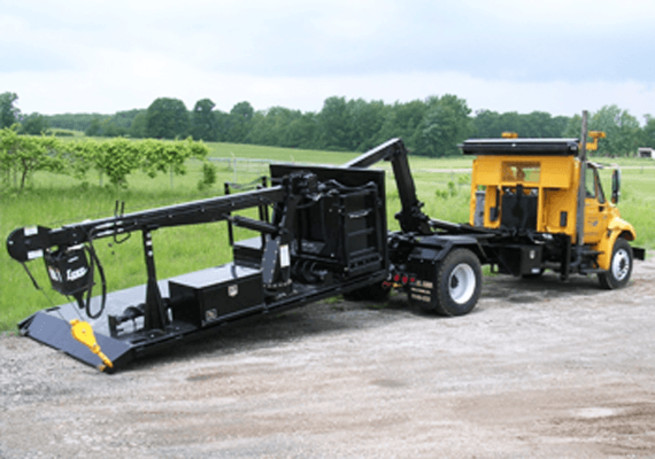

The Ampliroll AL 120 Series is tailored for top-notch performance, seamlessly picking up, transporting, dumping, and unloading your containers with enhanced safety and speed. This translates directly into increased profitability for your operations. Leveraging the advanced telescopic Jib design, it promises impeccable load distribution for all your containers. Balancing a lightweight structure with enduring durability, the AL 120 Series epitomizes versatility and efficiency for the long haul.

Technical Features:

• Designed to handle containers between 9 to 16 feet of length, performing all operations from the cab, it needs less than 1 min. for loading bodies The dumping mode is obtained by operating the main rams, actuating arm and tilting frame, with jib extended, altogether pivoting around the rear shaft
• A sub-frame made out of bended plate steel and cross members to be mounted on the truck frame, height 8.5 inches.
• A tilting frame, hinged to the sub-frame with a steel shaft carrying the rear centering rollers
• A main arm hinged on the tilting frame with a mechanical locking mechanism that allows the dumping mode.
• A telescopic jib, sliding in the arm, supporting a wide-open lifting hook enables loading from many positions
• An hydraulic system, manufactured by MARREL
• Pump, Axial piston – 12 gpm @ 1200 (RPM) SAE B, direct mount
