Hooklift AMP 140A Series

31,000 Pounds


Hooklift AMP 140A Series: Powering 31,000 lbs of Lifting Precision

Have a question about Hooklift AMP 140A Series? Click the yellow button above.

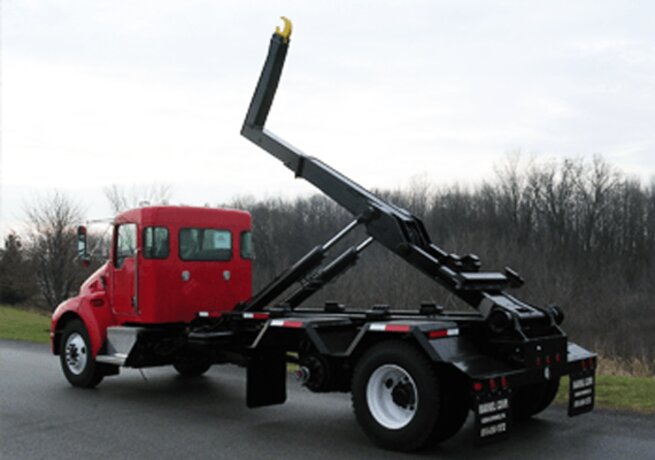

Hooklift AMP 140A Series Overview

The Ampliroll AMP 140A Series revolutionizes your operations, expertly picking up, transporting, dumping, and unloading your containers with unmatched safety and rapidity, driving substantial profits your way. Harnessing the state-of-the-art telescopic Jib design, it delivers impeccable load distribution across all your containers. Melding streamlined weight with robust longevity, the AMP 140A Series stands as a beacon of versatility and peak efficiency

Technical Features:

  • Designed to handle containers between 13 and 20 feet of length, performing all operations from the cab, it needs less than 1 min. for loading bodies The dumping mode is obtained by operating the main rams, actuating arm and tilting frame, with jib extended, altogether pivoting around the rear shaft
  • A sub-frame made out of bended plate steel and cross members to be mounted on the truck frame, height 10 inches
  • A tilting frame, hinged to the sub-frame with a steel shaft carrying the rear centering rollers.
  • A main arm hinged on the tilting frame with a mechanical locking mechanism that allows the dumping mode.
  • A telescopic jib, sliding in the arm, supporting a wide-open lifting hook enables loading from many positions
  • An hydraulic system, manufactured by MARREL.
  • Pump, Axial piston – 12 gpm @ 1200 (RPM) SAE B, direct mount
